Product Details:
|
| Warranty: | 12 Months | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Power: | Electronic, 220V Or 380V AC±10% 50/60HZ | Temperature Range: | -40°C~150°C(can Be Customized) |
| Capacity: | 80L/150L/225L/408L/800L/1000L Or Customize | Model No: | LY-280 |
| External Size: | 93*155*95 W*H*D(cm) | Certification: | ISO, CE |
| Refrigerater: | French Tecumseh | Humidity Range: | 20%~98%RH |
| Fluctuation: | ±0.5°C ±2.5%RH | Inner Size: | 40*50*40 W*H*D(cm) |
| Certificate: | CE ISO | ||
| High Light: | Low Pressure Environmental Test Chamberr,High Altitude Temperature Humidity Chamber,150L Temperature Humidity Test Chamber |
||

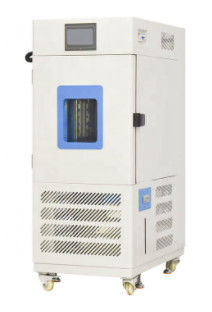

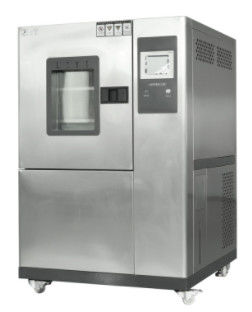

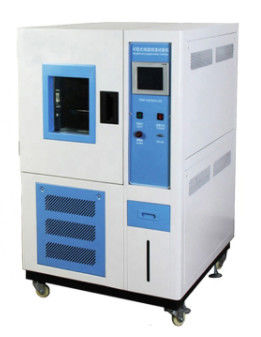

Liyi Environmental Control Temperature Humidity Simulation High Altitude Low Pressure Test Chamber
Liyi Climatic Chamber is used to test the material characteristic for wire type, skin type, plastic, rubber, cloth, Equiped with a special ventilation regulator for maintain the fresh air inside when heating. This testing machine design with sophisticated air-displacement adjustment device and a digital voltage meter, current meter, watt-hours, the timer can be used to measure the air replacement rate. Horizontal circulatory air supply system and both sides of airflow regulator to ensure the internal temperature uniformity and stability.
| Model | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 | |
|
Inner Size W×H×D(cm) |
40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | |
| Volume (V) | 80 L | 150L | 225L | 408L | 800L | |
|
Temp and Hum Range |
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
|||||
|
Function
|
Fluctuation | ±0.5°C ±2.5%RH | ||||
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) | |||||
|
Controller Analytical Accuracy |
±0.3°C ±2.5%RH | |||||
|
Material
|
Inner Wall | #SUS 304 Stainless steel | ||||
| Outer Skin | #SUS 304 Stainless steel | |||||
|
Heat Preservation |
High temperature resistant, high chlorine acid b vinegar foam insulation materials |
|||||
| Refrigeration Way | Single stage compression refrigeration | |||||
| Refrigerator | French Tecumseh | |||||
| Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) | |||||
| Condensing Way | Air-cooled or water-cooled | |||||
| Heater | Nickel chrome heating wire heater | |||||
| Humidifier | Semi-closed steam and wet | |||||
| Water Supplying Way | Automatic cycling water supply | |||||
