Product Details:
|
| Warranty: | 12 Months | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Power: | Electronic, 220V 50HZ | Test Chamber Volume: | 108L/270L/600L/700L/1000L Or Custom Made |
| Test Chamber Temperature: | NSS.ACSS 35°C±1°C/ CASS 50°C±1°C | Controller: | PID Or LCD Touch Screen |
| Standard: | ASTM ISO EN JS | Customized Support: | OEM, ODM |
| Design Standard: | CNS3627,3885,4159,7669,8886/ JIS D-0201/ ISO3768/ ASTM | Spray Quantity: | 1.0~2.0ml/ 80cm2/h |
| PH: | 6.5~7.2/ 3.0~3.2 | Saturated Air Cylinder Temperature: | NSS.ACSS 47°C±1°C/ CASS 63°C±1°C |
| Keyword: | Salt Spray Test Machine | Certification: | ISO, CE |
| High Light: | ASTM Salt Spray Test Chamber,600L Salt Spray Test Machine,270L Salt Spray Corrosion Test Chamber |
||

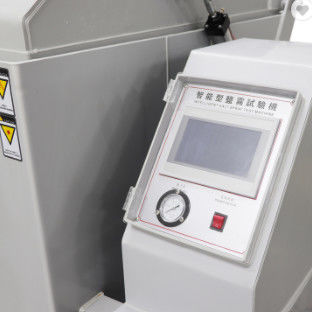

Liyi Salt Spray Chamber Price / Salt Spray Test Machine
Liyi salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.
Liyi salt spray test machine is an accelerated corrosion test that produces a corrosive attack to the coated samples in order to predict its suitability in use as a protective finish. The appearance of corrosion products (oxides) is evaluated after a period of time. Test duration depends on the corrosion resistance of the coating; the more corrosion resistant the coating is, the longer the period in testing without showing signs of corrosion. Different coatings have different behaviour in salt spray test and consequently, test duration will differ from one type of coating to another.
Characteristics:
1. Spray nozzle the heart of teser adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.
2. Controller is digital type microcomputer which delivers precision temparature.
3. Parameters show on the display screen such as temparature, humidity, pressure, spray capacity and time.
4. Test specifications are accept worldwild.
Customized:
| Model | LY-609-60 | LY-609-90 | LY-609-120 | LY-609-150 | LY-609-200 | |
| Design standard |
GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371 |
|||||
| Test chamber capacity(L) | 108L | 270L | 600L | 750L | 1000L | |
|
Temperature |
Test chamber | NSS.ACSS 35°C±1°C/CASS 50°C±1°C | ||||
| Saturated air cylinder | NSS.ACSS 47°C±1°C/CASS 63°C±1°C | |||||
|
Test chamber size L×W×D(cm) |
60*45*40 | 90*60*50 | 1200*1000*500 | 1500*1000*500 | 2000*1000*500 | |
| Max capacity of test liquid(L) | 15 | 25 | 40 | 40 | 40 | |
| Power | AC220V,10A | AC220V,15A | AC220V, 30A | AC220V, 30A | AC220V, 30A | |
