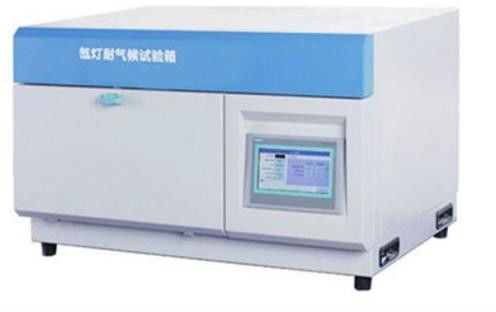

Simple Desktop Xenon Lamp Aging Testing Chamber

Simple Desktop Xenon Lamp Aging Testing Chamber



Application:
This equipment is a simple desktop xenon lamp aging chamber, which can be used in various automotive interiors, plastics, paints, coatings, electronic meters, textiles, printing and dyeing, dyes, decorative materials, wooden floors, safety helmets, leather, petrochemicals, Rubber and other materials are subjected to artificial aging tests under simulated sunlight and color fastness to light, weather, and composite color fastness to light and perspiration. By setting the xenon lamp irradiation energy, temperature, and xenon lamp light and dark alternate conditions in the test chamber, the simulated natural environment required by the standard is provided to test the material's performance changes such as fading, aging, softening, hardening, and cracking.

Characteristics:

1. Exposure method: up and down adjustable sample tray, three-dimensional space can test three-dimensional specimens;

2. Light source system: imported long xenon lamp, high intensity, 1.8KW professional AC air-cooled xenon arc lamp；

3. Special filter components are used to make the filtered spectrum fully meet the requirements of GB, FZ, AATCC, ISO, JIS and other standards;

4. Irradiance control: digital setting of light intensity, real-time monitoring, automatic adjustment, meeting the stability requirements of different standards for test light sources (optional ordering control point 420nm; 340nm; 300-400nm or 300-800nm single band monitoring)；

5. Temperature control: Black-Board Thermometer (BPT) or Black Label Thermometer (BST) is detected at the same working position as the sample, which truly reflects the test condition of the sample. The measured data is processed by the CPU and displayed on the color screen in the form of numbers, graphs, curves, etc. , No need to stop for observation.

6. Humidity display: The meter has a humidity display value, which is not controlled;

7.Data output method: The instrument is equipped with a USB port, and the test data can be directly exported by a U disk according to the EXL form file and read on the computer;

8.Data display mode: 7-inch weinview color touch screen display and control, Chinese and English operation, multiple test monitoring modes (number, curve, table), convenient control, intuitive and clear.

9. Standard setting: custom setting or program setting, test standards such as AATCC, ISO, GB, JIS, etc., can be stored permanently after setting.

10. Monitoring interface: friendly monitoring interface, operating curve (as shown in the figure):

Specifications:

Structure material:

Cabinet structure: composed of test cabinet, heating/light/dark/wind circulation system and electrical control cabinet;

Shell material: high-grade stainless steel plate or A3 steel plate with color spraying treatment；Liner material: SUS304# stainless steel plate, corrosion-resistant, easy to clean, beautiful and generous；

Chamber door: open the door downwards, saving space in terms of operation, and the side of the door is tightly sealed by imported silicon rubber;

Sample holder: made of all stainless steel, bent into shape.

Control System:

Screen: 7-inch color touch screen man-machine interface

Operating language: Chinese display

Operation mode: program operation (darkness, light cycle mode) or fixed value operation

Test standard: custom fixed value or program setting, can set AATCC, ISO, GB, JIS and other test standards, and save it forever

Operating items: blackboard temperature (BPT) or black mark temperature (BST), test box temperature, relative humidity, irradiance, xenon lamp tube temperature, irradiation exposure timer, over-temperature temperature setting, running time setting, Spray time (spray, stop spray cycle) temperature and humidity irradiance operation curve monitoring, operation status monitoring, alarm function monitoring

Alarm protection function: temperature over-temperature, fan overload, xenon lamp overheating, water tank shortage, power phase lack, humidifier to prevent dry burning, etc. When each fault occurs, the display directly indicates the cause of the machine fault and its troubleshooting method and the dynamic protection function is activated

Data storage: large-capacity data storage function, USB port U disk direct export

Security device:

Lamp protection: In order to make the xenon lamp work normally without damage, this equipment uses a fan cooling system to interlock with the lamp. If the fan fails, the xenon lamp will automatically go out and the whole machine will stop working.

Lamp over-temperature: independent lamp over-temperature protection setting, prolong the service life of the lamp and prevent over-temperature damage

Power phase sequence: phase loss, phase sequence, leakage, protect the machine from damage when the power fails

Motor protection: motor thermal overload protection to protect the stable operation of the motor

Over-temperature protection: The control system interface has over-temperature temperature set point protection, if the temperature in the box exceeds the set value, the alarm will start

Installation conditions:

Installed power supply:AC220V 50HZ

Installed power:Whole machine 3.5KW

Surrounding environment:No strong vibration around

Ambient temperature:15～25℃, humidity <90%R.H
