Product Details:
|
| Power: | Electronic | Humidity Range: | 10-98%RH(when Temperature Range 10℃-95℃) |
|---|---|---|---|
| Temperature Uniformity: | ≤2℃ | Heating Rate: | 5~15℃/min In Linear Way(-55-100℃) |
| Temperature Range: | -70℃~+180℃ | Temperature Fluctuation: | ≤±0.5℃ |
| Departure: | ≤2.0℃ | Temperature Control Accuracy: | ≤±0.1℃ |
| Cooling Rate: | 5~15℃/min In Linear Way(-55-100℃) | ||
| High Light: | 228L Environment Test Chamber,228L Environmental Stress Screening Chamber |
||

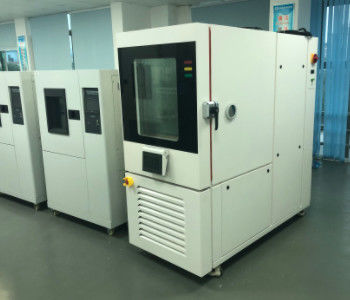

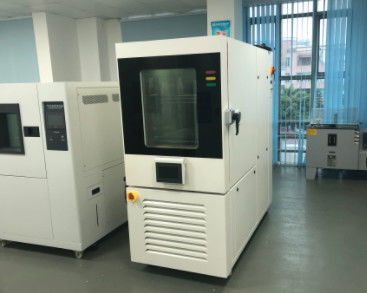

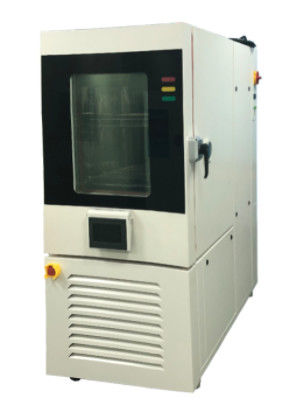

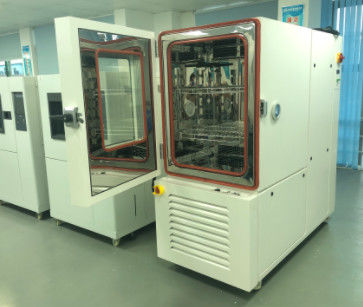

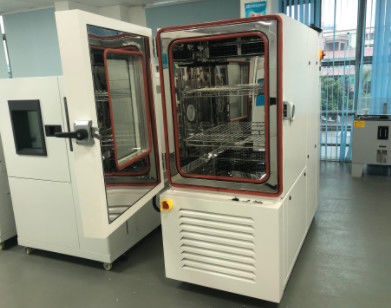

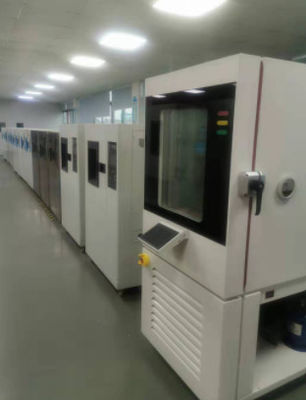

LIYI Rapid Temperature Change Ess Environment Test Chamber
The equipment is a device for environmental stress screening (temperature cycle), high and low temperature environmental adaptability and reliability test. For various electromechanical, electronic products are used to detect early faults, simulate the actual temperature environment and assess the ability of the product to withstand temperature.
GB/T 2423.1-2008, GJB150.4A-200, GB/T 2423.22-2012/IEC60068-2-14:2009, ISO2423.22-1987
| Model | LY-2228 |
| Volume | 228L |
| Inner Size(W*H*D) | 735*700*443mm |
| Temperature Humidity Range |
-70℃~+180℃ 10-98%RH(when temperature range 10℃-95℃) |
| Temperature Fluctuation | ≤±0.5℃ |
| Temperature Uniformity | ≤2℃ |
| Departure | ≤2.0℃ |
| Temperature Control Accuracy | ≤±0.1℃ |
| Heating Rate | 15℃/min in linear way(-55-100℃) |
| Cooling Rate | 15℃/min in linear way(-55-100℃) |
