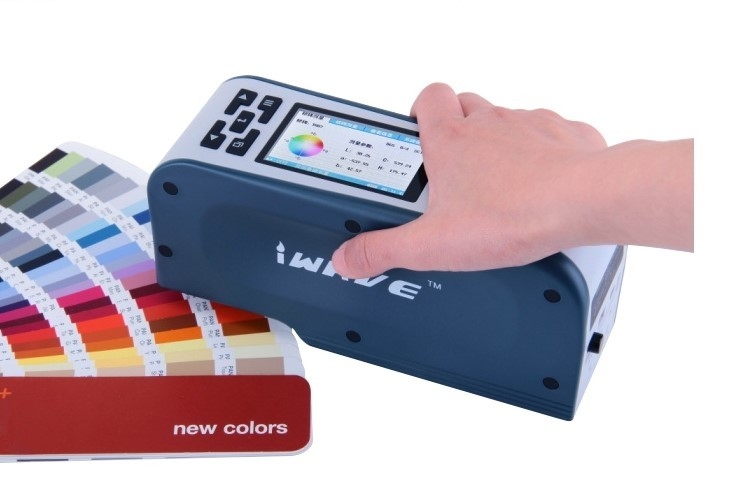

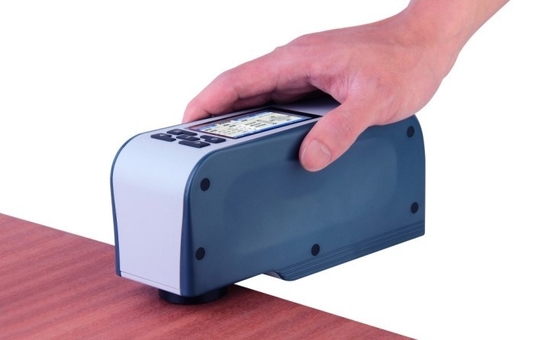

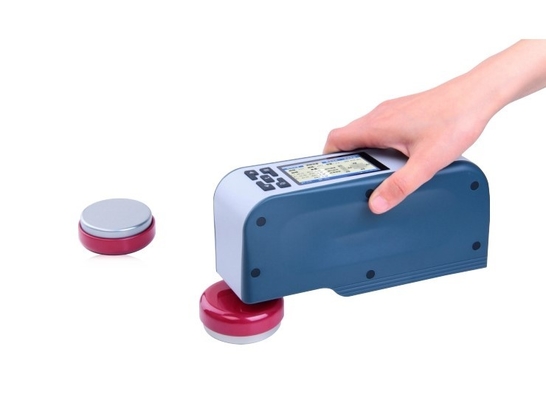

4~16 Mm Precision Diamond Colorimeter

4~16 Mm Precision Diamond Colorimeter
4~16 Mm Precision Diamond Colorimeter 4~16 Mm Precision Diamond Colorimeter 4~16 Mm Precision Diamond Colorimeter

Large Image :  4~16 Mm Precision Diamond Colorimeter

Product Details:
Place of Origin: CHINA
Brand Name: LIYI
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Standard export case
Delivery Time: 15 working day
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 100 SET PER ONE MONTH

4~16 Mm Precision Diamond Colorimeter

Description
Warranty: 12 Months Place Of Origin: Guangdong, China
Customized Support: OEM, ODM Battery Charging Time: 8 Hrs
Color: Optional Voltage: 220v/60HZ
Light Source: LED Blue Excitation Illumination Condition: CIE Recommendation:8/d
High Light:

Precision Diamond Colorimeter

4~16 mm Precision Diamond Colorimeter



Application:

Precision colorimeter is based on the International Commission on Illumination CIE relevant standards, national standards developed and produced through the National Measurement SCM certified professional colorimeter. The colorimeter using the new import key components, carefully designed, with accuracy and stability, simple operation, easy to learn, affordable and so on. Taking into account the complexity of the colorimeter measurement and diversity of user requirements, Weaver developed the country's first optical measurement of 16mm caliber precision colorimeter. If you want to measure the texture of the object exists, pitting, or the measured surface grainy relatively strong or relatively large size of the measured object, or analyze soft and pop-up object, this time you can

use 16mm diameter colorimeter for measuring.



Characteristics:

·Real-time, fast, accurate.

·Does not cause fluctuation in measurement data visual positioning(national patent).

·Environmentally friendly, more low-power devices, large-capacity lithium battery.

·Be more stable in colorimeter: △E<0.05

·Be more convenient in colorimeter: Automatic boot correction(national patent).

·Fast measuring speed: 0.5 s.

·True color display, more comfortable observation.



Main features:

·Fast response time.

·Smaller error.

·More stable.

·Save energy.

·Reasonable price.

·3 kinds of measuring calibers to meet different requirements.



Specifications:

Display Mode CIELAB,CIELCH
Color Difference Formula △E*ab
Illumination Condition CIE Recommendation:8/d
Light Source LED blue excitation
Sensor Photo diode array
Measurement Caliber φ4mm/φ8mm/φ16mm Alternative
Measurement Condition Observer:CIE 10° Standard observer
Light source: D50 D65 F11(TL84)
Contain light way:SCI SCE
Measurement Range L: 0 to 100
Repeated Accuracy E<0.05 (take the deviation average after 30 times measuring the whiteboard)
Table Difference △E<0.2
Measurement Interval 0.5 Sec.
Storage Capacity Type sample data : 100 with testing sample data: 200
Language Patterns English/Simplified Chinese
Battery Charging Time 8 hrs
Battery Li-ion battery, 5000 times Measurement
Lifetime of Bulb 5 years more than 1.6 million measurements
Display Screen TFT true color 2.8inch@(16:9) Resolution ratio:400x240
Interface of External

USB2.0 (USB-B Type)- data communication with Color Analysis System

Software; RS-232 (115200bps)- connected with micro printer

Working Temperature Range 0℃-40℃(32℉-104℉)
Storage Temperature Range -20℃-50℃(-4℉-122℉)
Humidity Range Relative humidity less than 85%,without condensation
Weight 700g
Size 199*68*90mm
Size of Exterior Package 400*240*340mm
Standard Accessories

3000mAH Li-ion battery/AC adapter/USB Data line/CD Color Analysis

Software /User manual/Warranty card

Optional Accessories Flour measuring device/Liquid measuring device/Micro printer
