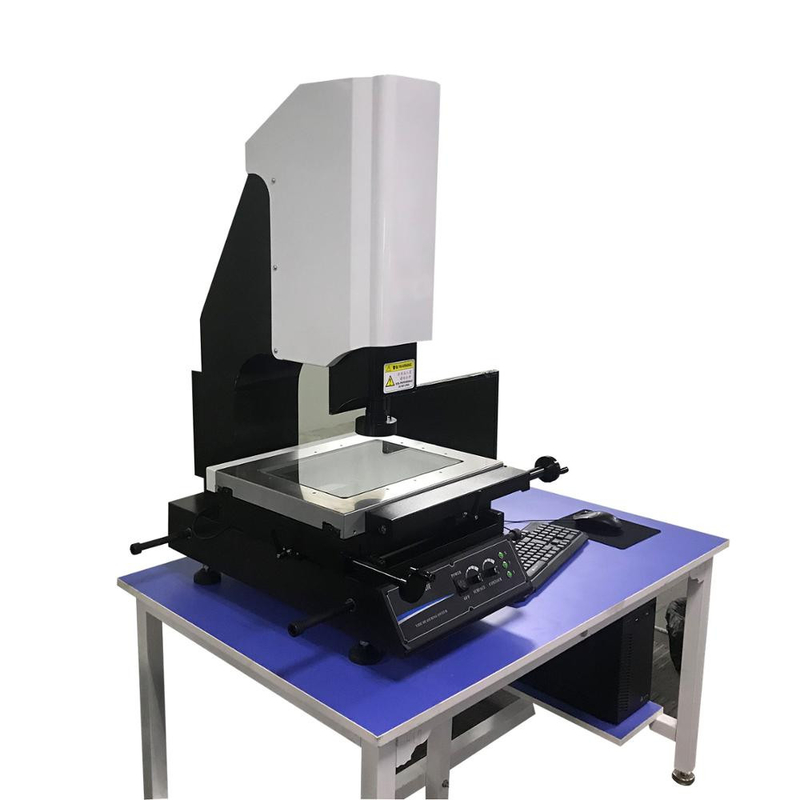

Manual 2D Optical Measuring Instruments 0.7 - 1.1mm ISO Certified

Manual 2D Optical Measuring Instruments 0.7 - 1.1mm ISO Certified
Manual 2D Optical Measuring Instruments 0.7 - 1.1mm ISO Certified

Large Image :  Manual 2D Optical Measuring Instruments 0.7 - 1.1mm ISO Certified

Product Details:
Place of Origin: CHINA
Brand Name: LIYI
Certification: CE,ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiation
Packaging Details: Standard export wooden case
Delivery Time: 20 working day
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability: 80 SET PER ONE MONTH

Manual 2D Optical Measuring Instruments 0.7 - 1.1mm ISO Certified

Description
Customized Support: OEM, ODM Warranty: One Year
Analysis Force: 0.001mm Field Of View Objects: 0.7 ~ 1.1mm
Keyword: Measurement Equipment Metal Table Size: 354 *228mm
Certification: CE, ISO Working Distance: 108mm
Materials: Marble Load: 30KG
Glass Table Size: 210 *160mm
High Light:

0.7mm Optical Measuring Instruments

,

1.1mm Optical Measuring Instruments

,

ISO 2d optical measuring machine

2D Manual Optical Measuring System Measurement Equipment

Application:

It is used in all application area whose goal is the coordinate, such as in machinery, electron, and instrument and plastic industry.



Main Function:

1.Element measurements: multi-point measurement point, line, circle, arc, angle, ellipse, rectangle measuring points provided, automatic identification of point, line, circle, arc.

2.element structure: the center structure, the intersection of structure, the mid-point structure, line structure, a round structure, the angle structures.

3.preset elements: point, line, circle, arc.

4.graphics: coordinate translation, straighten the work piece.

5.arbitrary axis straightened, coordinate system reset.

6.graphic to enlarge, reduce graphics, graphics translation, graphic printing graphic is selected, uncheck, graphics removed.



Technology:

Model LY-3020CP LY-4030CP LY-5040CP
Measuring range X 300cm 400cm 500cm
Y 200cm 300cm 400cm
Z 200cm 200cm 200cm



Workbench

Marble table 500mm*380mm 660mm*500mm 800mm*640mm
Glass table size 340mm*240mm 440mm*340mm 540mm*440mm
Load 50kg 50kg 50kg
Machine weight 460kg 550kg 630kg
Overall dimension of machine (mm) 760*660*1700 900*800*1750 1100*950*1750







Optical system

CCD 130W high definition digital camera
camera lens Continuous zoom lens with PMS manual freeze position
Video magnification Image multiples 36x-210x
Working distance 78mm
Display resolution 0.0001mm
Property market 1.1mm-8.1mm
Grating ruler 1um patch grating ruler
Measurement software Zk3D-CNCautomatic image measurement software
Measurement accuracy ≦(3+L/200)um
Power 110V-220V±10% 50/60Hz



Reference pictures:

Manual 2D Optical Measuring Instruments 0.7 - 1.1mm ISO Certified 0

Manual 2D Optical Measuring Instruments 0.7 - 1.1mm ISO Certified 1
