Product Details:
|
| Warranty: | 12 Months | Customized Support: | OEM, ODM |
|---|---|---|---|
| Power: | Electronic | Load: | 30KG |
| CCD: | 1/3 Color CCD | Model Numbe: | LY-VMS |
| Repeat Accuracy: | 0.002mm | Machine Bottom: | 00level Granite |
| High Light: | Phone Screen Vision Testing Equipment,High resolution Image Measuring Equipment |
||

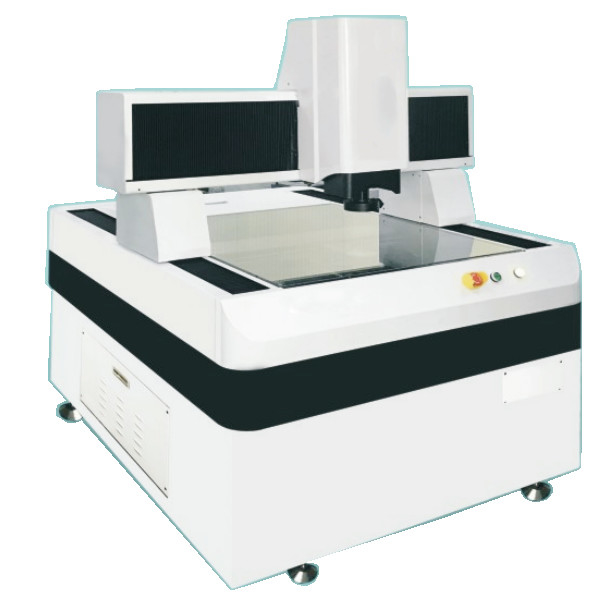

Phone Screen Vision Testing Equipment Optical Machine Image Measuring Instrument
Application:
Image Measuring Equipment is used in all application area whose goal is the coordinate, such as in machinery, electron, and instrument and plastic industry.
Characteristic:
Specification:
| Model | LY3020M-2D | |
| Work Table | Marble table(mm) | 450*350 |
| Glass table(mm) | 350*250 | |
| Exercise stroke(mm) | X:300mm Y:200mm | |
| Focusing stroke(mm) | (Z axis)150mm | |
|
Measuring and aiming system |
High-resolution camera(CCD)1/3”color CCD,600TV | |
| Zoom objective lens magnification :0.7-4.5X working distance:90mm | ||
| Video magnification: 35-225X Display resolution:0.0005mm | ||
| Professional accurate 2.5D manual measurement software | ||
| Indication Error | X.Y≤(3+L/200)um, (L is the measured length unit:mm) | |
| Lighting system | Both surface light source and transmission light source are LED, with adjustable brightness. | |
| Outta(mm) | 700*550*650 | |
| Weight(kg) | 350kg | |
| Load-bearing Glass Table | 15kg | |
| Power supply | 220V(AC) 50HZ | |
Reference Pictures:
