Product Details:
|
| Customized Support: | OEM, ODM | Warranty: | One Year |
|---|---|---|---|
| Digital Resolution: | 1um | Color: | White |
| Keyword: | Video Measuring Machine | Metal Table Size: | 354 *228mm |
| Zoom Lens Magnification: | 0.7 ~ 4.5 | Working Distance: | 108mm |
| Materials: | Marble | ||
| High Light: | CNC Optical Measurement Image Instrument,2D Optical Measurement Image Instrument,2D Vmm Video Measuring Machine |
||
Overview:
This product has the characteristics of high speed and precision, and can perform multiple functions on a single machine, greatly reducing the cost of repeatedly purchasing machines and the waste of space. It can effectively detect the contour, surface shape, dimension, angle and position of various workpieces. It is especially suitable for PCB, film, protective film, optical glass, electronics, large sheet metal parts, connectors, precision mechanical parts, electronic components, semiconductor components and other industries to achieve rapid and accurate detection in large quantities.
Technology:
| Model | LY-3020CP | LY-4030CP | LY-5040CP | ||
| Measuring range | X | 300cm | 400cm | 500cm | |
| Y | 200cm | 300cm | 400cm | ||
| Z | 200cm | 200cm | 200cm | ||
|
Workbench |
Marble table | 500mm*380mm | 660mm*500mm | 800mm*640mm | |
| Glass table size | 340mm*240mm | 440mm*340mm | 540mm*440mm | ||
| Load | 50kg | 50kg | 50kg | ||
| Machine weight | 460kg | 550kg | 630kg | ||
| Overall dimension of machine (mm) | 760*660*1700 | 900*800*1750 | 1100*950*1750 | ||
|
Optical system |
CCD | 130W high definition digital camera | |||
| camera lens | Continuous zoom lens with PMS manual freeze position | ||||
| Video magnification | Image multiples 36x-210x | ||||
| Working distance | 78mm | ||||
| Display resolution | 0.0001mm | ||||
| Property market | 1.1mm-8.1mm | ||||
| Grating ruler | 1um patch grating ruler | ||||
| Control system | ZK full closed loop control system | ||||
| Measurement software | Zk3D-CNCautomatic image measurement software | ||||
| Measurement accuracy | ≦(3+L/200)um | ||||
| Power | 110V-220V±10% 50/60Hz | ||||

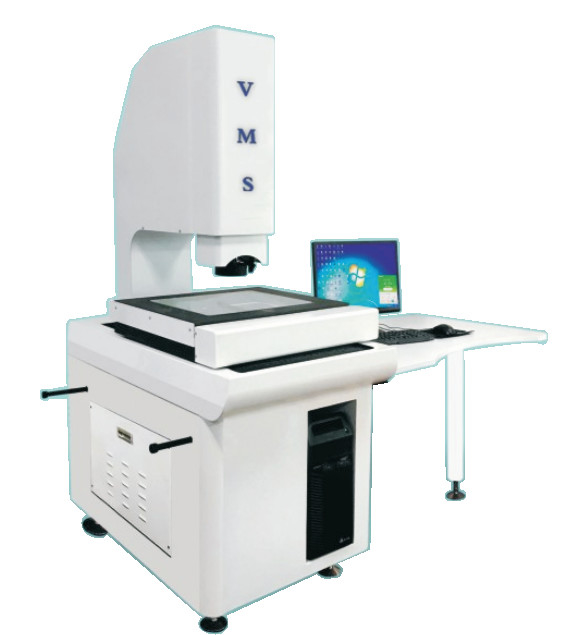

Reference pictures:
