LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber

LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber
LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber

Large Image :  LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber

Product Details:
Place of Origin: Guangdong, China
Payment & Shipping Terms:
Minimum Order Quantity: 1

LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber

Description
Accuracy: ±0.5℃ Power: 3.8KW
Protection Class: IP57 Voltage: 380 V
Temperature Range: -70℃~180℃ Temperature Fluctuation: ±0.5℃
Cooling Rate: 2.0~3.0℃/min (180.0℃~25.0℃), 1.0~2.0℃/min (25.0℃~-40.0℃), 0.7~1.5℃/min (-40.0℃~-70.0℃) Heating Rate: 3.0~5.0℃/min (-70.0℃~180.0℃ Within 60 Mins)
Temperature Uniformity: ±1.5℃ (-40.0℃~100.0℃), ±2.0℃ (100.1℃~180.0℃ Or -40.0℃~-70.0℃) Humidity Range: 20.0%RH~98.0%RH
Humidity Fluctuation: ±1.0% RH Humidity Uniformity: ±2.0%RH
Internal Material: Stainless Steel (SUS304) External Material: Cold Rolled Steel Sheet/powder Spraying
Heat Insulating Material: 100mm Thickness Polyurethane Plate + 10mm Thickness Mineral Wool
Highlight:

automotive battery test chamber

,

shock vibration test machine

,

temperature humidity test chamber

LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber

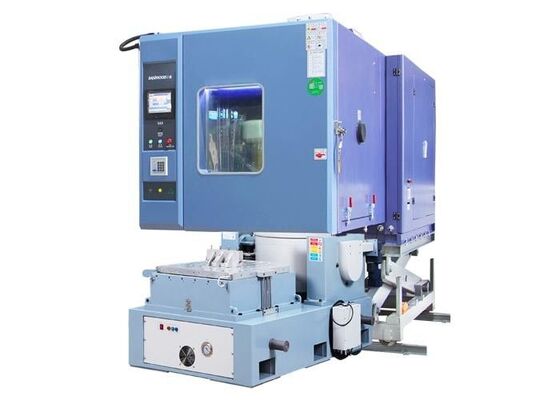

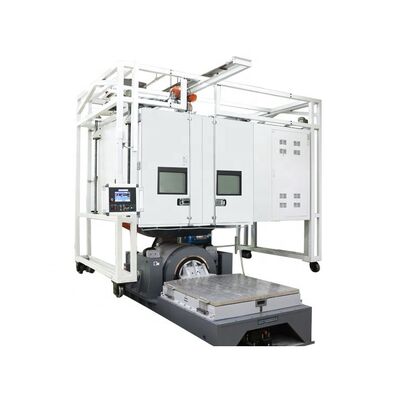

The AGREE environmental test chamber performs reliability, identification, and environmental stress screening tests for electronics, automotive, and telecommunications industries. It provides temperature control and cooling for samples on vibration tables with transmission and rotation across three spatial axes. The flexible insulated wall compensates for table movement and chamber volume changes while decoupling vibration from temperature control components.
Compliance Standards
IEC 62660-2, SAE J2464, IEC 60086-4, UL 1642, UN 38.3, IEC 61960, IEC 62133, UL 2054, IEEE 1625, IEEE 1725
Technical Specifications
Model LY-2500 LY-21000 LY-21700 LY-23400
Inner Size (mm) W*H*D 800*800*800 1000*1000*1000 1200*1200*1200 1500*1500*1500
Temperature Control Range -70℃~180℃ (A:0℃~180℃; B:-20℃~180℃; C:-40℃~180℃; D:-70℃~180℃)
Temperature Fluctuation ±0.5℃
Cooling Rate 180.0℃~25.0℃: 2.0~3.0℃/min
25.0℃~-40.0℃: 1.0~2.0℃/min
-40.0℃~-70.0℃: 0.7~1.5℃/min
Heating Rate -70.0℃~180.0℃ within 60 mins: 3.0~5.0℃/min
Temperature Uniformity ±1.5℃ (-40.0℃~100.0℃)
±2.0℃ (100.1℃~180.0℃ or -40.0℃~-70.0℃)
Humidity Control Range 20.0%RH~98.0%RH
Humidity Fluctuation ±1.0% RH
Humidity Uniformity ±2.0%RH
Internal Material Stainless Steel (SUS304)
External Material Cold Rolled Steel Sheet/Powder Spraying
Heat Insulating Material 100mm thickness polyurethane plate + 10mm thickness mineral wool
Fan Centrifugal Blower
Compressor France Tecumseh, Germany Bock, Germany Bitzer
Condenser Air-cooled, Water-cooled
Refrigerant R404A, R23, R508
Evaporator Fin-and-Tube Heat Exchanger
Heater Nickel Chromium Alloy Heating Wire
Humidifier Steam Humidifier
Volume (L) 500L 1000L 1700L 3400L
Power Supply 380V AC 50/60Hz
Controller TEMI-2700
Product Images
LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber 0 LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber 1
Manufacturer Profile

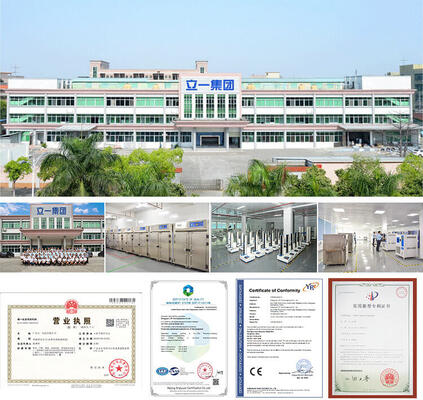

Guangdong LIYI Technology Co., Ltd is a high-technology production-oriented enterprise specializing in developing, manufacturing, and marketing environmental testing equipment. With advanced technology, experienced technical management personnel, and efficient professional service staff, we maintain fine quality management and comprehensive after-sales service systems.
Our company primarily produces simulated environmental testers and plastic/rubber testing equipment for various materials testing industries. Our production base is located in Dongguan, Guangdong province, China's manufacturing center. To better serve customers with reduced costs and early delivery, we established an office in Kunshan, Jiangsu province in 2005 for Eastern China marketing and servicing.
LIYI serves customers from over 150 countries and regions while collaborating with dealers worldwide to provide superior service. Our mission is to help every customer establish testing laboratories to ensure product quality. We continue to develop, innovate, and maintain integrity while combining international testing standards with specific customer demands to set new benchmarks in the Chinese testing industry.
LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber 2
Frequently Asked Questions
Are you a manufacturer? Do you offer after-sales service? How can I request service? What is the warranty?
Yes, we are one of China's professional and largest manufacturers of customized industrial drying ovens, hot air ovens, laboratory ovens, vacuum ovens, universal tensile testing machines, environmental climatic chambers, and muffle furnaces. Every machine purchased from our factory includes a 12-month warranty after shipment. We typically offer 12 months of free maintenance, with an additional 2-month extension to account for sea transportation.
If your machine experiences issues, contact us via email or phone. We will troubleshoot the problem through conversation or video chat if necessary. Once confirmed, we provide solutions within 24 to 48 hours.
What is the delivery term?
Standard machines are typically available from warehouse stock. If no stock is available, delivery time is 15-20 working days after deposit receipt for standard machines. We can arrange expedited delivery for urgent requirements.
Do you accept customization service? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including placing your logo on the equipment.
How can I install and use the machine?
After ordering testing machines from us, we provide English-language operation videos via email. Most machines ship as complete units, pre-installed and ready for use—simply connect the power cable and begin operation. We offer on-site installation assistance when necessary.
LIYI Battery Automobile Industry Use Shock Temperature Humidity and Vibration Testing Machine AGREE Test Chamber 3
