Product Details:
|
| Material: | Steel | Size: | Customized |
|---|---|---|---|
| Temperature: | -70℃~150℃ | Humidity: | 20%~98% Customizied |
| Color: | Customized | Controller: | Imported Tecumseh Compressor |
| High Light: | environmental testing chamber,stability test chamber |
||

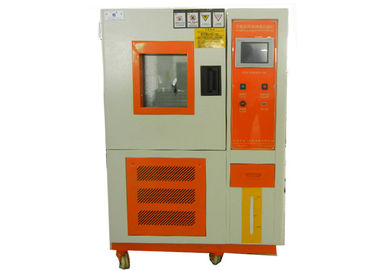

80L Safe Temperature Humidity Test Chamber Imported Tecumseh Compressor
Usage :
It is also called environment testing machine, used to test various types of materials for their tolerances of heat, coldness, dryness and wetness. It is widely used in quality inspection of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Product Feathers:
1. Modern-design appearance: safe, reliable and easy to operate.
2. Easy to observe the tested product: multi-layer glass view window, anti-sweat electric heater device, high brightness PL fluorescent lamp.
3. Double insulated door seal strip: effectively prevent internal temperature leakage.
4. External water supply system: convenient to supply water into humidification barrel, and recycle automatically.
5. Refrigeration & dehumidification system- ""Tecumseh""(France): energy saving, low noise, stable performance, with green refrigerant(R23, R404A)
6. Imported LCD screen: display testing value ,set value, time, etc.
7. Multi-segment program: can be quick and sloped controlling temp. and humidity.
8. Mobile pulley & positioning foot at the bottom of machine: convenient to move and fix location.
Applicable industries:
The machine applied to test the prodcuts quality, such as electronic, plastic products, electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care ... and so on.
Technical parameter:
|
Mode |
LY-280 |
LY-2150 |
LY-2225 |
LY-2408 |
LY-2800 |
|
|
Inner Size W×H×D(cm) |
40×50×40 |
50×60×50 |
60×85×80 |
60×85×80 |
100×100×80 |
|
|
Outside Size W×H×D(cm) |
93×155×95 |
100×148×106 |
117×166×91 |
140×176×101 |
170×186×111 |
|
|
Volume (V) |
80 L |
150L |
225L |
408L |
800L |
|
|
Temp and Hum Range |
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
|||||
|
Function |
Fluctuation |
±0.5°C ±2.5%RH |
||||
|
Deviation |
±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) |
|||||
|
Controller Analytical Accuracy |
±0.3°C ±2.5%RH |
|||||
|
Material |
Inner Wall |
#SUS 304 Stainless steel |
||||
|
Outer Skin |
#SUS 304 Stainless steel |
|||||
|
Heat Preservation |
High temperature resistant, high chlorine acid b vinegar foam insulation materials |
|||||
|
Wind Cycling Way |
Centrifugal fan-broadband type forced air circulation |
|||||
|
Refrigeration Way |
Single stage compression refrigeration |
|||||
|
Refrigerater |
French Tecumseh |
|||||
|
Refrigerants |
R4O4A USA Dupont environmental protection refrigerant(R23+R404) |
|||||
|
Condensing Way |
Air-cooled or water-cooled |
|||||
|
Heater |
Nickel chrome heating wire heater |
|||||
|
Humidifier |
Semi-closed steam and wet |
|||||
|
Water Suplying Way |
Automatic cycling water supply |
|||||
|
Standard Accessories |
1 Observe window(double-deck cavity toughened glass), 1 50mm test hole in the left, 1 PL inner chamber lamp, 2 clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
|||||
|
Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system |
|||||
Picture showing :
