Product Details:
|
| Material: | Steel | Size: | Customized |
|---|---|---|---|
| Temperature: | -70℃~150℃ | Humidity: | Double 85 Testing |
| Color: | Customized | Controller: | TM880 |
| High Light: | constant temperature and humidity chamber,stability test chamber |
||
Constant Temperature Humidity Test Chamber Multifunctional Drug Leakage
Usage :
Constant temperature and humidity chamber is simulation under the condition of product in humid climate
environment combination (high and low temperature operation & storage, temperature cycle,
high temperature and high humidity, low temperature and humidity and condensation test, etc.),
check whether the adaptability and characteristics of the product itself.
Characteristics:
1. Use the high precision microcomputer touch temperature and humidity controller with high stability of
platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity
testing .
2. control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant
temperature&humidity environment.
Technical parameter:
|
Mode |
LY-280 |
LY-2150 |
LY-2225 |
LY-2408 |
LY-21000 |
|
|
Inner Size W×H×D(cm) |
40×50×40 |
50×60×50 |
60×85×80 |
60×85×80 |
100×100×100 |
|
|
Outside Size W×H×D(cm) |
93×155×95 |
100×148×106 |
117×166×91 |
140×176×101 |
170×186×111 |
|
|
Volume (V) |
80 L |
150L |
225L |
408L |
800L |
|
|
Temp and Hum Range |
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
|||||
|
Function |
Fluctuation |
±0.5°C ±2.5%RH |
||||
|
Deviation |
±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) |
|||||
|
Controller Analytical Accuracy |
±0.3°C ±2.5%RH |
|||||
|
Material |
Inner Wall |
#SUS 304 Stainless steel |
||||
|
Outer Skin |
#SUS 304 Stainless steel |
|||||
|
Heat Preservation |
High temperature resistant, high chlorine acid b vinegar foam insulation materials |
|||||
|
Wind Cycling Way |
Centrifugal fan-broadband type forced air circulation |
|||||
|
Refrigeration Way |
Single stage compression refrigeration |
|||||
|
Refrigerater |
French Tecumseh |
|||||
|
Refrigerants |
R4O4A USA Dupont environmental protection refrigerant(R23+R404) |
|||||
|
Condensing Way |
Air-cooled or water-cooled |
|||||
|
Heater |
Nickel chrome heating wire heater |
|||||
|
Humidifier |
Semi-closed steam and wet |
|||||
|
Water Suplying Way |
Automatic cycling water supply |
|||||
|
Standard Accessories |
1 Observe window(double-deck cavity toughened glass), 1 50mm test hole in the left, 1 PL inner chamber lamp, 2 clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
|||||
|
Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system |
|||||

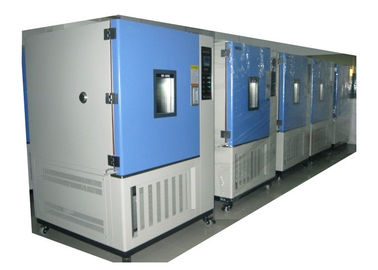

Picture showing :
