Product Details:
|
| Power: | Lectronic, AC220V | Test Chamber Size (cm): | 60*45*40 |
|---|---|---|---|
| Max Volum Of Test Liquid (L): | 15 | Volume (cm): | 107*60*118 |
| High Light: | salspray test equipment,salt spray corrosion test chamber |
||

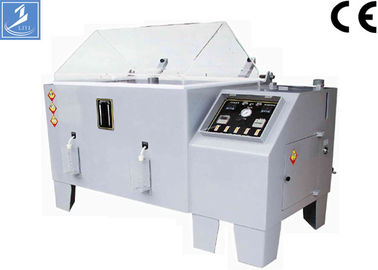

Salt Spray test Chamber
Uses:
This Salt Spray test Chamber can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.
Specification:
| Model | LY-609-60 | LY-609-90 | LY-609-120 | LY-609-200 |
| Design Standards | GB/T 10587-2006,GB/T 10125-1997,JIS-D0201,H8502,H8610,K5400,Z2371 | |||
| Test chamber capacity (L) | 108L | 270L | 600L | 1440L |
|
Temperature |
Test chamber | NSS.ACSS 35°C±1°C/CASS 50°C±1°C | ||
| Air cylinder | NSS.ACSS 47°C±1°C/CASS 63°C±1°C | |||
|
Test chamber size LxWxD(cm) |
60*45*40
|
90*60*50
|
120*100*50
|
200*120*60
|
| Max volum of test liquid (L) | 15 | 25 | 40 | 40 |
| Volume LxWxD(cm) | 107*60*118 | 141*88*128 | 190*130*140 | 270*150*150 |
| Power | AC220V,10A | AC220V,15A | AC220V,30A | AC220V,30A |
| Spray quantity | 1.0~2.0ml/80cm2/h | |||
| PH | 6.5~7.2 3.0~3.2 | |||

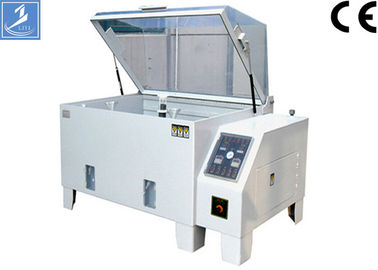

Salt Spray test Chamber
Characteristics:
1. Programmable Salt Spray Test Chamber spray nozzle the heart of teser adopt Bo Nute Principle which change saline water into atomization but no crystallization produced.
2. Programmable Salt Spray Test Chamber controller is digital type microcomputer which delivers precision temparature
3. parameters show on the display screen such as temparature, humidity, pressure, spray capacity and time.
4.test specifications are accept worldwild.
Customize parts :
1. Inner chamber size
2. Inner chamber structure
3. PID programmable controller or PLC touch screen controller
