Product Details:
|
| Test Chamber Capacity(L): | PVC Environmental Salt Spray Test Machine / Corrosion Resistance Fog Test Chamber | Test Chamber Size: | 60*45*40 Cm |
|---|---|---|---|
| Max Volum Of Test Liquid(L): | 108L | Volume: | 107*60*118cm |
| Voltage: | 220V | Controller: | PID Controller |
| Warranty Period: | 12 Months | Usage: | Salt Spray Corrosion Test Chamber |
| Power: | Electronic | Material: | PVC Material |
| Highlight: | salt spray corrosion test chamber,salt spray testing machine |
||

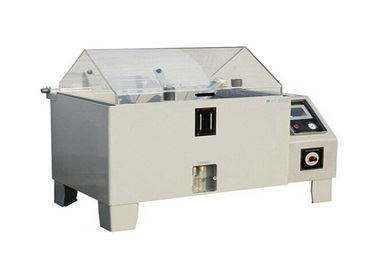

PVC Environmental Salt Spray Test Machine / Corrosion Resistance Fog Test Chamber
The Salt Spray Test (Fog Test) is an accelerated corrosion test used to evaluate the relative corrosion resistance materials exposed to a salt spray or salt fog at an elevated temperature. Test specimens are placed in an enclosed salt spray testing cabinet or chamber and subjected to a continuous indirect fog or spray of a salt water solution. This climate is maintained throughout the duration of the test.
Design standards:
ISO9227,CNS3627,3885,4159,7669,8886,JIS D-0201,H-8502,H-8610,K-5400,Z-2371,ISO 3768,3769,3770,ASTM B-117,B-268,GB-T2423,GJB 150.
Specifications:
|
Model |
LY-609-60 |
LY-609-90 |
LY-609-120 |
LY-609-200 |
|
Design Standards |
GB/T 10587-2006,GB/T 10125-1997,JIS-D0201,H8502,H8610,K5400,Z2371 |
|||
|
Test chamber capacity (L) |
108L |
270L |
600L |
1440L |
|
Temperature |
Test chamber |
NSS.ACSS 35°C±1 C/CASS 50°C±1°C |
||
|
Air cylinder |
NSS.ACSS 47°C±1° C/CASS 63°C±1°C |
|||
|
Test chamber size LxWxD(cm) |
60*45*40 |
90*60*50 |
120*100*50
|
200*120*60 |
|
Max volum of test liquid (L) |
15 |
25 |
40 |
40 |
|
Volume LxWxD(cm) |
107*60*118 |
141*88*128 |
190*130*140 |
270*1 50*150 |
|
Power |
AC220V,10A |
AC220V,15A |
AC220V,30A |
AC220V, 30A |
|
Spray quantity |
1.0~2.0ml/80cm2/h |
|||
|
PH |
6.5~7.2 3.0~3.2 |
|||
