Product Details:
|
Test Chamber Capacity(L): | Programmable Fog Cyclic Corrosion Salt Spray Test Chamber , Temperature 35℃~55℃ | Test Chamber Size: | 60*45*40 Cm |
---|---|---|---|
Max Volum Of Test Liquid(L): | 108L | Volume: | 107*60*118cm |
Voltage: | 220V | Controller: | PID Controller |
Warranty Period: | 12 Months | Usage: | Salt Spray Corrosion Test Chamber |
Power: | Electronic | Material: | PVC Material |
Highlight: | salspray test equipment,salt spray testing machine |

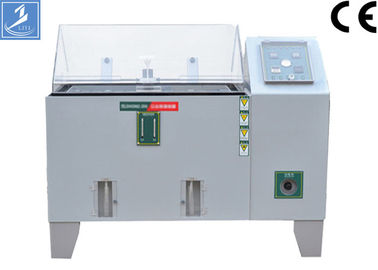

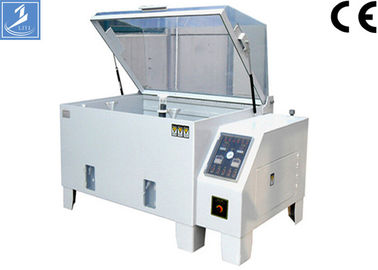

Programmable Fog Cyclic Corrosion Salt Spray Test Chamber , Temperature 35℃~55℃
Fog Cyclic Corrosion Testing Machine
1. 1 years experience
2. The Third party certificate
3. Fast delivery
Application:
Salt Spray test Chamber is used for imitating natural status in increase imitation test. The imitating condition is harder than status that we usually meet. The tester can combine the follow status such as: salt smog,
dry, humidity,normal temperature, low temperature.The tester is for product used in intense changeable
environment, such as: parts of automobile, navigation equipment, camera equipment, building material,
electroplate coating and resistant to metal electrolytic corrosion in electrical system.
Design standard:
CNS:3627,3385,4159,7669,8886JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: 8117,B268.
Specifications:
Model |
LY-609-60 |
LY-609-90 |
LY-609-120 |
LY-609-200 |
Design Standards |
GB/T 10587-2006,GB/T 10125-1997,JIS-D0201,H8502,H8610,K5400,Z2371 |
|||
Test chamber capacity (L) |
108L |
270L |
600L |
1440L |
Temperature |
Test chamber |
NSS.ACSS 35°C±1 C/CASS 50°C±1°C |
||
Air cylinder |
NSS.ACSS 47°C±1° C/CASS 63°C±1°C |
|||
Test chamber size LxWxD(cm) |
60*45*40 |
90*60*50 |
120*100*50
|
200*120*60 |
Max volum of test liquid (L) |
15 |
25 |
40 |
40 |
Volume LxWxD(cm) |
107*60*118 |
141*88*128 |
190*130*140 |
270*1 50*150 |
Power |
AC220V,10A |
AC220V,15A |
AC220V,30A |
AC220V, 30A |
Spray quantity |
1.0~2.0ml/80cm2/h |
|||
PH |
6.5~7.2 3.0~3.2 |
