Product Details:
|
| Capacity: | 1kg To 100T | Accuracy: | 0.5 |
|---|---|---|---|
| Material: | Paint-coated Aluminum Blanking Plate | Test Force Resolution: | 1/250,000 |
| Weight: | About 145 Kg | Effective Test Force Range: | 0.1-500mm/min |
| Name: | Double Column Mechanical Tensile Testing Machines AC220V With High Precise Ball Screw | ||
| Highlight: | tensile strength testing machine,universal tensile testing machine |
||

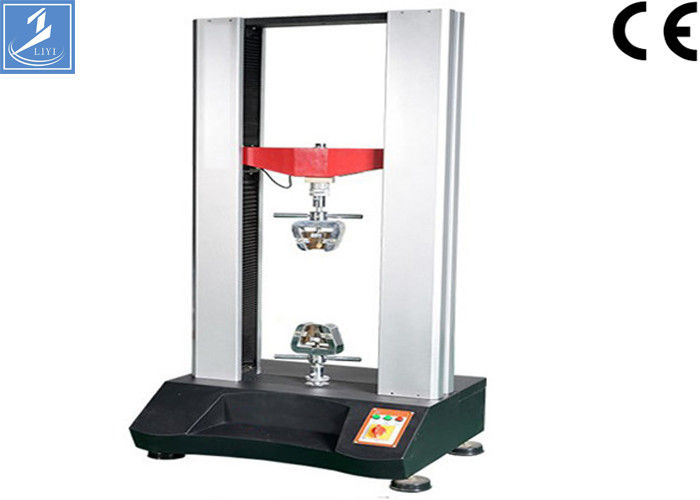

Double Column Mechanical Tensile Testing Machines AC220V With High Precise Ball Screw
Introduce:
1. Motor system: AC Motor +Driver +High precise ball screw (Taiwan)
2. Control system: a, computer control with TM2101 software; b, Back to origin automatically after the test, c, store data automatically or by manual operation
3. Data transmission: RS232
4. Displacement resolution: 0.001mm
5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
Test Standard
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS-K6854, PSTC7,ect.
Characteristics
1. The structure is made of the paint-coated aluminum blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficiency and structure rigidity.
2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The
accuracy of speed can be controlled in 2%.
3. That Using the business computer as the main control machine plus the special testing software of
our company can conduct all of testing parameter, work state, collecting data&analysis, result display
and
printing output.
Specifications:
|
Capacity |
5,10,20,50,100,200,500,1000,2000,5000KG optional |
|
Stroke |
800mm(not including fixture) |
|
Test Speed |
50~500mm/min(control by keyboard inputing) |
|
Test range |
320mm MAX |
|
Dimention |
80*50*150CM |
|
Weight |
90kg |
|
Accuracy |
±0.5%or better |
|
Operation method |
computer control |
|
Resolution |
1/150,000 |
|
Motor |
Panasonic servo motor |
|
Operation system |
TM2101 |
|
Accessories |
customized clamps by appointed, force sensors,printer, and operation manual |
|
Power |
220V/50HZ |
Safety Device:
|
Stroke protection |
Machinery, computer double protection, prevent over preset |
|
Force protection |
system setting |
|
Emergency stop device |
Handling emergencies |
Photo Reference
