|Material:||Inner Stainless Steel||Wavelength Range:||300-800nm|
|Temperature Range:||RT+10℃～80℃||Test Chamber Size:||All Size Can Customize|
|Temperature Deviation:||±0.5℃||Temperature Uniformity:||±2℃|

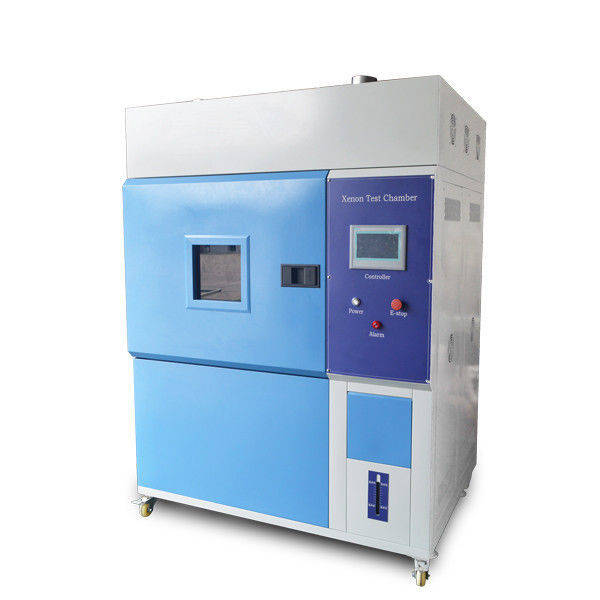

Xenon Lamp Test Chamber Accelerated Aging Chamber Stainless Steel Environmental Test Equipment
Xenon Lamp Aging Chamber is to test the product undergoneillumination/rain/condensation/temperature/humidity/wind and any other climatic changes.This aging tester mainly for the test of non-ferrous/organic/rubber/plastic and building materials.
Xenon Lamp Aging Chamber can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.
Principle and function:
1. UV ultraviolet aging test machine using fluorescent UV lamp as the light source, by simulating natural sunlight's ultraviolet radiation and condensation, the material accelerated weathering test, in order to obtain material weathering results.
2. UV resistant climate chamber can simulate natural climate ultraviolet rays, rain, high temperature, high humidity, condensation, darkness and other environmental conditions, by reproducing these conditions, combined into a loop, and it automatically performs complete cycle number of times, this is the UV aging chamber works
A variety of alternative filtration system.
Water spray function.
Relative humidity control.
Chamber air temperature control system.
Irregularly shaped sample holder.
Cheap xenon arc lamps.
Xenon lamp aging test instrument easy to install and easy to use and basically no routine maintenance.
Xenon arc lamp life depends on the level of irradiance used, general lamp life of 1600 hours. Lamp replacement convenient, long-lasting xenon lamp aging tester filter to maintain the required spectrum to provide protection.
|light source||1.8 KW original Q - Lab import air cooled xenon lamp or 1.8 KW domestic xenon lamp (normal life 1500 hours)|
|filters||filters or the sun glass filter (optional)|
|effective exposure area||1000 cm2 (a 150 x 70 mm model 9) of the|
|light irradiance range||30 w/m2 ~ 100 w/m2 (300 nm to 400 nm)
Or 0.35 W/m2 ~ 0.7 W/m2 (@ 340 nm)
Or 0.5 W/m2 ~ 2.1 W/m2 (@ 420 nm)
|blackboard temperature range||room temperature 30 ℃ ~ + 80 ℃|
|shell material||stainless steel 304 / coating|
|overall dimensions||925 * 487 * 487 mm (length x width x height)|
|net weight||110 kg (including packaging wooden box 140 kg)|
|power supply||220 v, 50/60 hz;Maximum current 12 a|
