|Usage:||Process Testing Machine||Controller:||LCD Touch Screen|
|Temperature Uniformity:||≤2°C||Temperature Range:||Room Temperature+10°C~80°C ±3°C|
|Temperature Fluctuation:||±0.5°C||Humidity Range:||30%~95%|
|Heating Speed:||5 Degree/Min|
constant temperature and humidity chamber,
environmental testing chamber

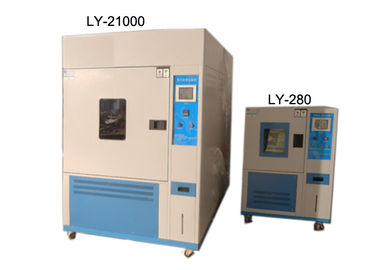

TEMI 880 Touch Screen Xenon Arc Environmental Testing Chamber 50Hz 3 Phase
Xenon Arc Lamp Weatherometer is a comprehensive climate testing machine, can do climatic aging test and the lightfastness test of polymer materials which exposed at simulated sunlight. It simulates the light, temperature, rainfall, condensing, humidity to test the materials; it can be used for choosing new materials, improving existing materials, or assessment of change in material composition.
Xenon Arc Lamp Weatherometer applied to control the product quality, such as electronic, plastic products,
electrical appliances, instruments, food, vehicles, metals, chemicals, building materials, aerospace, medical care and so on.
JIS K 6259 , ASTM1149 , ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003, GB 2951
|Test Chamber Size||500×600×500mm(D*W*H)|
|Test Chamber Volume||150L|
|Temperature range||Room temperature+10°C~80°C ±3°C|
|Balckboard temperature range||40°C~80°C±3°C|
|Water spray period||0min ~ 99h adjustable|
|Water spray pressure||3Kpa|
|Water spray time||0min ~ 99h adjustable|
|Lamp nominal power||1.8KW/1pcs(Made in China and wind cooled)|
|Lamp life time||Average life 1200~1600h(Consumable do not guarantee)|
The chamber mainly departed into test chamber, electronic controlling cabinet
and machinery chamber 3 parts.
The left side is test chamber, single door from right to left.
Right side is electronic controlling cabinet, there are temperature controller, switches,
error indicator on the controlling panel.
Machinery chamber is right beside the test chamber, contain filter, solenoid valve and
|Sheating Material||Painted steel plate|
|Inner chamber material||SUS304 stainless steel, corrosion resisting, easy cleaning and beautiful|
|Heat preservation material||Polyurethane rigid foam|
|Inerlayer||1 layler of SUS304 stainless steel sample frame, fluctuate distance is adjustable|
|Test hole||50mm test hole on the left wall with soft inside plug and sealed cover|
The single open the door, door and door design around the automatic add hotline,
in different work conditions to be automatic operation, ensure the equipment in low
temperature environment gate not gel and not frost
Pt100 resistance,the temperature and humidity can display on the TEMI880
|Controller||TEMI880 touch screen programmable controller|
|Hour meter||Record the exposed time|
In order to record every test work time, equipment in operating panel with timer,
may to the equipment time control, timing end equipment automatically shut
Control system using intelligent
control software system
Control system using intelligent control software system with automatic
combination lighting, heating subsystem working conditions.
In order to ensure that the temperature range of high precision control,
and at the same time over to the purpose of energy saving, consumption
reduction. Cooperate with perfect testing device can automatically detailed
fault display, alarm, such as when test occurs when abnormal condition,
screen can display fault condition.
|Working way||Multiple-point working|
|Power||380±10%v;50Hz, 3 phase 5 lines;|
