|Power:||220V 50/60HZ||Temperature Control Precision:||±1℃|
|Vacuum Degree:||-0.1MPa||End-use Temperature:||Maximum Temperature 1800℃|
|Heating Rate:||0--30℃/min(recommended ≦20℃/min)||Thermocouple:||Type B|
|Heating Element:||Silicon Molybdenum Rod||Display Mode:||Color LED Display|
|Vacuum Pump:||Oil-immersed Single Rotary Vane Vacuum Pump||Furnace Structure:||Double-layer Forced Air-cooling Structure|
industrial drying ovens,
custom industrial oven

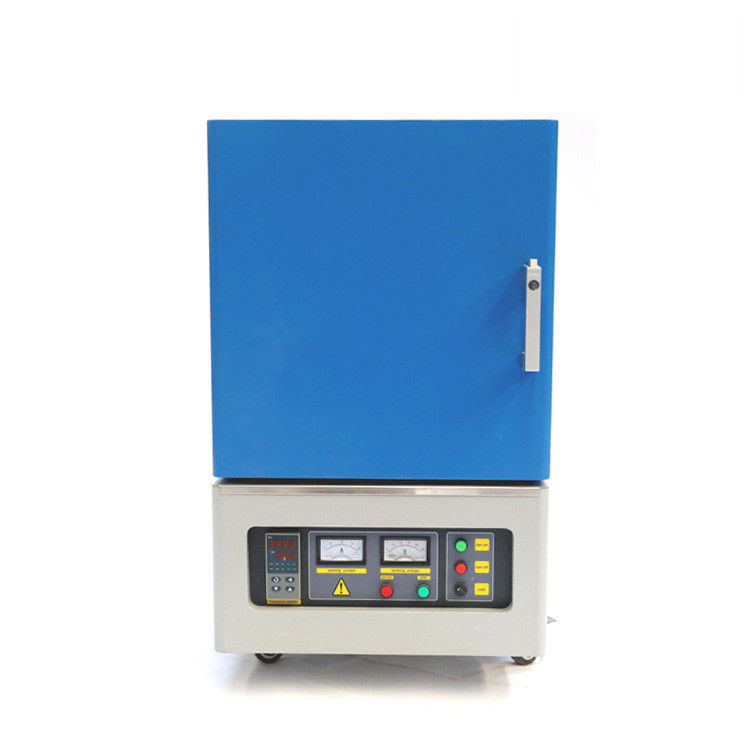

1800℃ Muffle Furnace High Temperature Oven With Vacuum Pump ±1℃ Precision
LY-16 series 1700 ℃ muffle furnace
This series of equipment is suitable for scientific research institutions, colleges and universities, industrial and mining enterprises ideal experimental and production equipment. It mainly used in high temperature precision annealing, micro-crystallization, ceramic glaze preparation, mold annealing, powder metallurgy, plastic powder foam test, sintering of nanometer materials, quenching of metal parts and all heat treatment required by high temperature technology
|Temperature control precision||±1℃|
|end-use temperature||maximum temperature 1800℃|
|heating rate||0--30℃/min(recommended ≦20℃/min)|
|heating element||Silicon molybdenum rod|
|Display mode||Color LED display|
|gasket ring||Fluorine ring|
|vacuum pump||Oil-immersed single rotary vane vacuum pump|
|Measuring mode||mechanical pressure gauge|
|Furnace material||High alumina polycrystalline ceramic fiber|
|Furnace structure||double-layer forced air-cooling structure|
1. The furnace mantle adopts unique design of double-deck structure with High quality cold-rolled steel plate, The paint is baked at high temperature, it can be used for a long time.
2. Equipped with air-cooling system, the furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall rate, etc.
3. The vacuum system adopts special design, the vacuum degree is -0.1MPa, and the atmosphere furnace pressure is 0.04MPa, automatic over-pressure and manual exhaust function, make it safe and reliable to use.
4.The inner box adopts integral seal, valve control are equipped with intake valve, exhaust valve, vacuum valve, it can be filled with nitrogen, argon and other inert gas.
5.The imported ceramic alumina poly-crystalline mullite fiber material in furnace is constructed by special technology, which is more energy efficient than traditional electric furnace.
6.The control system adopts the technology of artificial intelligence of microcomputer, which has the functions of PID regulation, fuzzy control, self-tuning, 50 segment programming, and it can program all kinds of programs of temperature rising, constant temperature, cooling temperature, and high precision of temperature control.
7. Modularized thyristor crystal control, phase shift trigger; The heating element is made by imported high quality silicon molybdenum rod.
8. The protection device adopts independent over temperature protection, overcurrent, leakage, short circuit protection
