Product Details:
|
| Material: | SUS 304# Stainless Steel | Power: | 220V Or 380V AC±10% 50Hz |
|---|---|---|---|
| Inner Size: | 50*60*50 (cm) | Color: | White |
| Inside Material: | Stainless Steel SUS 304 # | Temperature Range: | -40 ~ +150℃,-20~150C |
| Humidity Range: | 20%~98% | Cooling Speed: | 1~1.5C/min |
| High Light: | constant temperature and humidity chamber,environmental testing chamber |
||

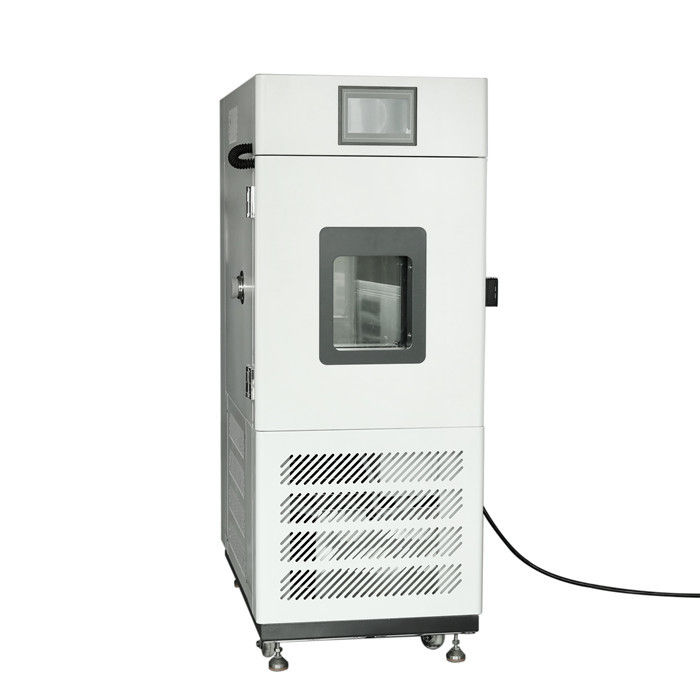

Stainless steel Constant Climatic Control Temperature Humidity Testing Chamber
It can simulate different environment condition. It's appropria-te for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define perform-ance of material.
Standards:
GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Characteristics:
1. Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistan-ce to temperature and wind speed in the circulatory system of temperature and humidity test.
2. Control temperature&humidity well-distributed, precisely and steady.
3. Completely independent system separate for testing in high temperature, low temperature and constant temperature & humidity environment.
Specification
| Mode | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 | |
|
Inner Size W×H×D(cm) |
40×50×40 | 50×60×50 | 60×85×80 | 60×85×80 | 100×100×80 | |
|
Outside Size W×H×D(cm) |
93×155×95 | 100×148×106 | 117×166×91 | 140×176×101 | 170×186×111 | |
| Volume (V) | 80 L | 150L | 225L | 408L | 800L | |
| Temp and Hum Range |
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
|||||
| Function | Fluctuation | ±0.5°C ±2.5%RH | ||||
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) | |||||
|
Controller Analytical Accuracy |
±0.3°C ±2.5%RH | |||||
| Material | Inner Wall | #SUS 304 Stainless steel | ||||
| Outer Skin | #SUS 304 Stainless steel | |||||
| Heat Preservation |
High temperature resistant, high chlorine acid b vinegar foam insulation materials |
|||||
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation | |||||
| Refrigeration Way | Single stage compression refrigeration | |||||
| Refrigerater | French Tecumseh | |||||
| Refrigerants | R4O4A USA Dupont environmental protection refrigerant(R23+R404) | |||||
| Condensing Way | Air-cooled or water-cooled | |||||
| Heater | Nickel chrome heating wire heater | |||||
| Humidifier | Semi-closed steam and wet | |||||
| Water Suplying Way | Automatic cycling water supply | |||||
| Standard Accessories |
1 Observe window(double-deck cavity toughened glass), 1 50mm test hole in the left, 1 PL inner chamber lamp, 2 clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
|||||
| Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system |
|||||
Product Effects
