Product Details:
|
| Inner Size W×H×D（cm）: | 40×50×40 | External Size W×H×D（cm): | 93×155×95 |
|---|---|---|---|
| Volume（L）: | 80 L | Temperature Range: | -70℃ - 150℃ |
| Humidity Range: | 20% - 98% | Temp&Humi Fluctuation: | Temp&Humi Fluctuation |
| Controller Resolution: | ±0.3℃；±2.5%RH | Inwall: | SUS 304# Steel Plate |
| Power: | 3phase 5 Lines, 380V AC±10% 50/60Hz | Condensing Way: | Air-cooling |
| High Light: | constant temperature and humidity chamber,stability test chamber |
||

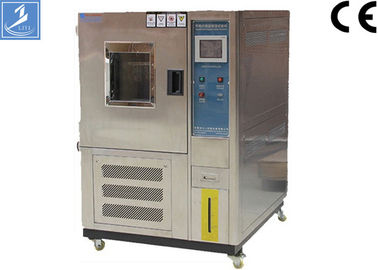

Constant Laboratory Temi880 Environment Temperature and Humidity Control Environmental Climatic Test Chamber Price
Description:
Constant Temperature Humidity Chambers can simulate the different indicators of constant temperature and humidity climate quickly and accurately for testing products which need to check their performance of temperature testing (-40℃~+150℃), humidity testing (20~98%R.H.),both of temerature and humidity testing at the same time.chamber power can be customized.
Constant Temperature Humidity Chamber which also call environment test chamber is designed for detecting the material under a variety of environmental test equipment and performance of a variety of materials holding test, cooling-off test, heating-up test, moistening test and drying test... Suitable for electronic, electrical, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, medical, aerospace and other products quality testing purposes,EN 14511.
Test Standards:
IEC 60068-2-1, IEC 60068-2-78, IEC 60068-2-30, IEC 60068-2-38
IEC 61215 - 10.11, 10.12, 10.13
EN 14511
ASTM E1171
Application industry:
(not limited to the following):
1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others...
Applications:
1. To simulate test environment with different temperature and humidity
2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated time effect
Chamber Design Features:
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Direct water supply connection for continuous operation
6. Accurate wet/dry-bulb humidity measurement system for easy mantain
Programmable Controller:
1. PIC controller for test chamber
2. Step types include: ramp, soak, jump, auto-start, and end
3. RS-232 interface to connect computer for output
Other Models:
Available inner capacity: 100L, 225L, 408L, 800L, 1000L; and customized dimensions.
Chamber Specification:
|
Model |
HD-E702-100-4 |
|
Internal dimension (W*D*H) |
400*500*500mm |
|
External dimension (W*D*H) |
600*1080*1380mm |
|
Temperature range |
-40~+150℃ |
|
Temperature fluctuation |
±0.5℃ |
|
Temperature uniformity |
2℃ |
|
Humidity range |
20~98%RH (Refer Image below) |
|
Humidity fluctuation |
±2.5%RH |
|
Humidity uniformity |
3%RH |
|
Cooling speed |
1℃/min in average (without loading) |
|
Heating speed |
3℃/min in average (without loading) |
|
Internal chamber material |
SUS#304 stainless steel, mirror finished |
|
External chamber material |
Stainless steel |
|
Cooling method |
Air cooling |
|
Controller |
LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
|
Insulation material |
50mm high density rigid Polyurethane foam |
|
Heater |
Explosion-proof type SUS#304 stainless steel fins radiator pipe heater |
|
Compressor |
France Tecumseh compressor |
|
Lighting |
Heat resistance |
|
Temperature sensor |
PT-100 dry and wet bulb sensor |
|
Observation window |
Tempered glass |
|
Testing hole |
Diameter 50mm, for cable routing |
|
Sample tray |
SUS#304 stainless steel, 2pcs |
|
Safety protection device |
Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
The above parameter belongs to the standard machine section, Welcome to customize
Photo Show:
About our factory:
Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing,marketing all kinds of environmental equipment.Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.
To strengthen the quality awareness,perfect management system,improve product credit,meet customers increasing requirements, our company brought into ISO9001:2008 international quality management system and obtained the certificate: N0006997-1.
Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.
