Product Details:
|
| Place Of Origin: | China | Power: | Electronic |
|---|---|---|---|
| Outside Material: | SECC Steel,fine Powder Coating Treatment | Uniformity: | 1% |
| Protection: | Over Temperature Protection | Certificate: | CE ISO |
| High Light: | industrial drying ovens,hot air circulating oven |
||

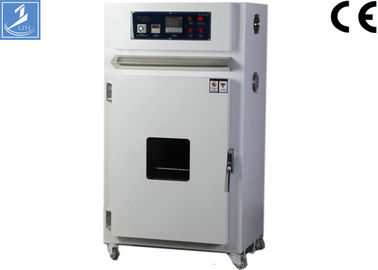

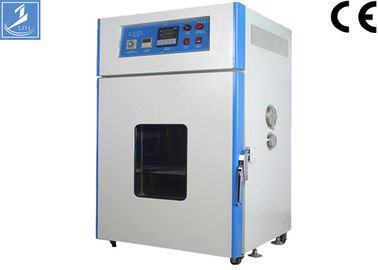

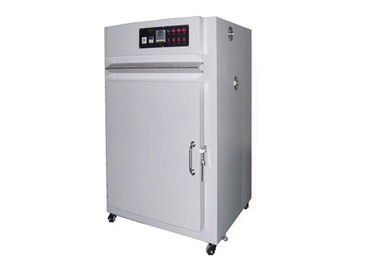

High Quality Laboratory Industrial High Temperature Drying Oven With SEEC Steel
Application:
Hot air drying oven can provide a stable test space for preheating,drying, changes about physics and chemistry testing. It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.
Product characteristics:
1. Hot air drying oven can be according to box size, single door or double door design, shell with environmentally friendly metal paint spray overall beautiful and generous. Internal tank optional steel plate, zinc plate or stainless steel plate.
2.Use centrifugal multi-wing type blower circulatory system; special air duct structure, stable temperature control, uniform temperature field; manufacturing process specifications; nice appearance; convenient in operation and maintenance; buys only need provide electric power and required working environment.
3. Supporting parts perfectly match with assembly; main functional elements are the international advanced level’s original parts.
4. Use microcomputer intelligent temperature controller, all-digital PID self-tuning adjustment expert function. Display working temperature, setting point and working condition. High control and display accuracy.
5. Control system of drying oven is fitted with over temperature power-off protector and buzzing alarm, which can be safety used when no body is on duty in 24 hours.
6. Configure high-temperature silicone rubber sealing strip; human environmental awareness; ensure the health of workers.
Horizontal hot air cycle:
Suitable for baking of sheet products, such as metal, plastic film, film screen printing, leather processing, etc.
Upper and lower hot air cycle:
Suitable for baking of smaller products, such as baked paint for toys and hardware parts.
Specications:
| Model |
Inner Size W*H*D(cm) |
External Size W*H*D(cm) |
Temperature Range(°C) |
Heating up Time |
Accuracy (°C) |
Uniformity (°C) |
Power |
Rate of work (kw) |
| LY-645 | 45×40×40 | 66×92×55 |
(A-D) A:200°C B:300°C C:400°C D:500°C
|
RT~100°C About 10min
|
±0.3 | ±1% |
220V Or 380V
|
3.5 |
| LY-660 | 50×60×50 | 70×125×65 | ±0.3 | ±1% | 4.5 | |||
| LY-690 | 60×90×50 | 80×156×65 | ±0.3 | ±1% | 5.5 | |||
| LY-6100 | 80×100×60 | 100×166×75 | ±0.3 | ±1% | 8 | |||
| LY-6120 | 90×120×60 | 110×186×75 | ±0.3 | ±1% | 10 | |||
| LY-6140 | 120×140×60 | 160×186×75 | ±0.3 | ±1% | 12 | |||
| LY-6160 | 140×160×80 | 180×206×97 | ±0.3 | ±1% | 14 | |||
| LY-6180 | 140×180×100 | 200×200×118 | ±0.3 | ±1% |
16 |
