Product Details:
|
| Temp&Humi Fluct: | ±0.5℃;±2.5%RH | Temperature Contro: | -70℃~150℃ |
|---|---|---|---|
| Color: | White, Blue And No-painted | Volume: | 280L |
| Inner Size(cm): | 60x85x80 | Humidifier: | Semi-closed Steam |
| Power: | 220VAC±10% 50/60Hz | Humidity Range: | 20%~98%,20%~98%R.H.(10%-98%R.H / 5%~98%R.H Is The Specific Condition ),20%~98%R.H.(10%-98%R.H/5%~98%R.H Is The Specific Condition),20% To 98% RH +/- 0.5% |
| Temperature Uniformity: | ±1.5C | Warranty Period: | 1 Years |
| High Light: | benchtop design Environmental Chamber Humidity,ASTM D4714 Environmental Chamber Humidity,CE approved Environmental test chamber |
||
Introduction:
Temperature humidity test chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from battery, communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Temperature and humidity testing help to determine the behavior of the components in severe test conditions and environments that involve fluctuating environment, high temperature, and different relative humidity. The tests can be done with constant temperature and humidity in a static state and can bedone in a dynamic state where the moisture is used to induce a failure of the components or materials.
Standards:
GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566 etc.
Characteristics:
1. Graceful appearance, circularly shaped body, surface treated with mist strips . Easy to operate, safe and reliable.

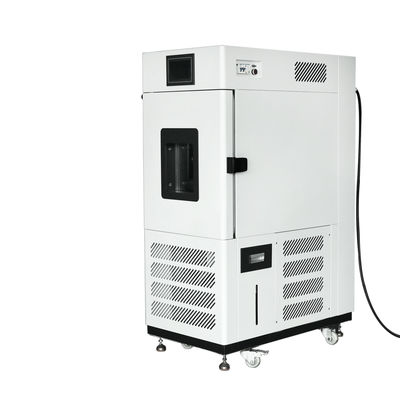

2. Rectangular double-paned viewing window for viewing sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5.French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates control of temperature and humidity.
Advantage of Temperature Humidity Control System Unit Test Equipment
● Small, portable, benchtop design
● Wide temperature ranges and volume selection.
● Programmable touch screen controller.
Specifications:
| Model | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 | |
|
Inner Size W×H×D(cm) |
40×50×40 | 50×60×50 | 60×85×80 | 60×85×80 | 100×100×80 | |
|
Outside Size W×H×D(cm) |
93×155×95 | 100×148×106 | 117×166×91 | 140×176×101 | 170×186×111 | |
| Volume (V) | 80 L | 150L | 225L | 408L | 800L | |
| Temp and Hum Range |
A:-20°C~150°C B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C RH20%-98% |
|||||
| Function | Fluctuation | ±0.5°C ±2.5%RH | ||||
| Deviation | ±0.5°C-±2°C ±3%RH(>75%RH); ±5%RH(≤75%RH) | |||||
|
Controller Analytical Accuracy |
±0.3°C ±2.5%RH | |||||
| Wind Cycling Way | Centrifugal fan-broadband type forced air circulation | |||||
| Refrigeration Way | Single stage compression refrigeration | |||||
| Refrigerator | French Tecumseh | |||||
| Refrigerants | R4O4A USA DuPont environmental protection refrigerant(R23+R404) | |||||
| Condensing Way | Air-cooled or water-cooled | |||||
| Water Supplying Way | Automatic cycling water supply | |||||
| Standard Accessories |
1 Observe window(double-deck cavity toughened glass), 1 50mm test hole in the left, 1 PL inner chamber lamp, 2 clapboards, 1 bag of wet and dry bulb, 3 fuses, 1 power line. |
|||||
| Safety device |
Non- fuse-switch(compressor overload, refrigerant high low voltage, over-humidity and temperature protection, Protection switch,fuse stoppage warning system |
|||||
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process:
We offer below business term:
| Accepted Delivery Terms: | FOB, CFR, CIF, EXW, DDP |
| Accepted Payment Currency: | USD, EUR, HKD, CNY |
| Accepted Payment Type: | T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
| Nearest Port: | Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
