Product Details:
|
Material: | #SUS 304 Stainless Steel | Temperature Range: | A-d(20°C0~500°C) |
---|---|---|---|
Heating Up Time: | RT~100°C About 10min | Accuracy (°C): | ±0.3 |
Uniformity (°C): | ±1% | Rate Of Work (kw): | 3.5~16 |
Heating System: | PID+S.S.R. | Circulation System: | Air Force Level Cycle |
Power: | Save Power | Oven: | Lab Drying Oven |
High Light: | SUS 304 Hot Air Drying Oven,Electric Thermostatic Hot Air Drying Oven,Stainless Steel Industrial Air Circulating Oven |

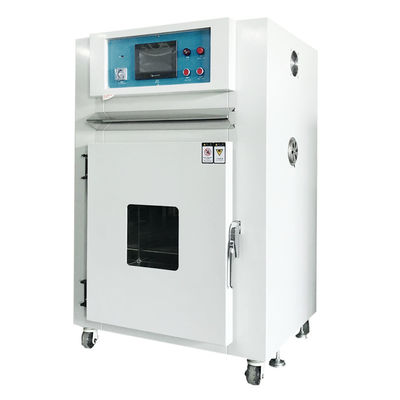

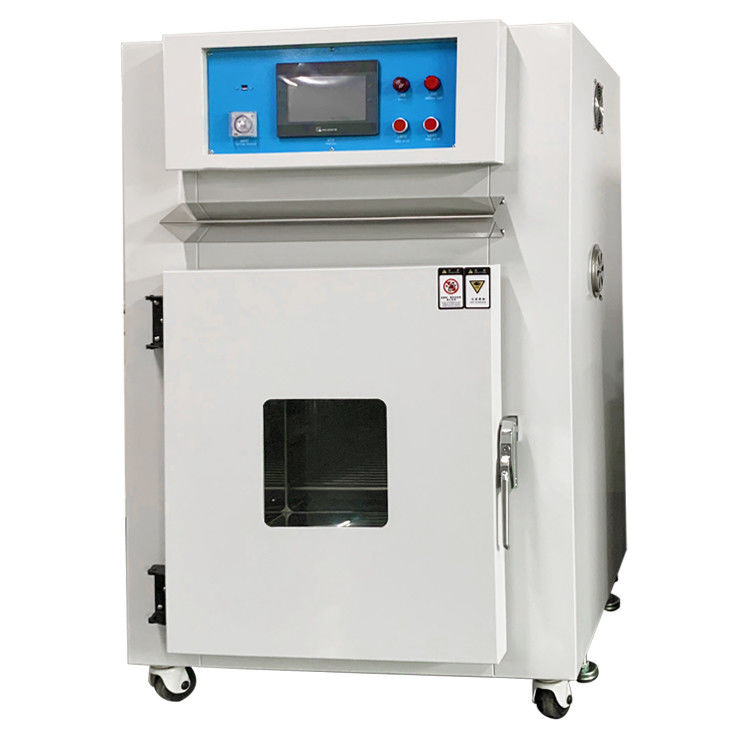

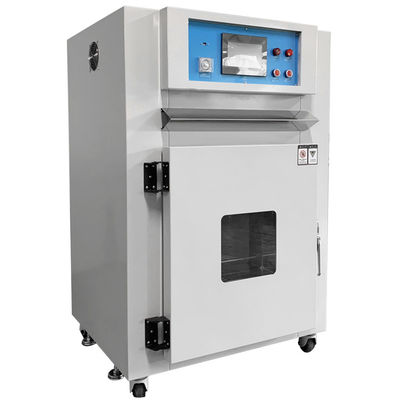

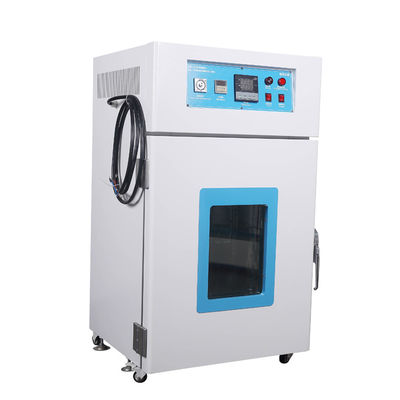

Industrial conventional electric thermostatic hot air drying oven
The product description of thermostatic drying oven:
It is applicable to industrial and mining enterprises, scientific research institutes, universities and colleges, medicine and health etc unit of laboratory drying, baking, heat treatment.
The main features of thermostatic drying oven:
1. Small volume, suitable for work in small space.
2. Light weight, convenient to move, is the ideal laboratory with drying oven.
3. Door of double-layer tempered glass Windows, can observe the indoor heating items of work.
Technical advantages
1. Robust drying chamber: The drying chamber is made by SUS304 or SUS316L steel plate, fully welded and mirror polished. The design is robust, simple and compact which requires minimum maintenance.
2. Uniform drying: Due to the specially designed air distributor, the hot air flow in each layer of trays is very uniform. The temperature difference inside the drying chamber is less than ±2 ℃.
3. Energy saving: Most of the hot air circulates inside the well insulated drying chamber and only part of it is exhausted via the exhaust valve. The amount of exhaust air is adjustable according to different drying conditions.
4. Flexibility in heat source: The heat source can be steam, hot water, electricity, thermal oil, oil/gas/coal/biomass fired hot air generator to match with different working conditions.
5. Flexibility in drying: Standard sized (640x460x45mm) but different types of trays are available for different kinds of wet materials.
6. Convenient operation: Control cabinet is installed on drying chamber which can accurately control and set drying temperature and hot air flow rate.
7. GMP design: The drying chamber is fully welded, mirror polished without dead corners for cleaning to meet GMP standard.
Specifications:
|
Inner size |
External size |
Temperature range |
Heating up time |
Accuracy |
Uniformity |
Power |
Rate of work |
LY-645 |
45×40×40 |
66×92×55 |
|
RT~100℃ |
±0.3 |
±1% |
|
3.5 |
LY-660 |
50×60×50 |
70×125×65 |
±0.3 |
±1% |
4.5 |
|||
LY-690 |
60×90×50 |
80×156×65 |
±0.3 |
±1% |
5.5 |
|||
LY-6100 |
80×100×60 |
100×166×75 |
±0.3 |
±1% |
8 |
|||
LY-6120 |
90×120×60 |
110×186×75 |
±0.3 |
±1% |
10 |
|||
LY-6140 |
140×120×60 |
160×186×75 |
±0.3 |
±1% |
12 |
|||
LY-6160 |
160×140×80 |
180×206×97 |
±0.3 |
±1% |
14 |
|||
LY-6180 |
180×140×100 |
200×200×118 |
±0.3 |
±1% |
16 |
Pictures:
Company:
LIYI INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 24 years. LIYI products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Contact Person: Victoria Li
Tel: +86 13929216856
Fax: 86-769-28682030
