Product Details:
|
| Material: | SUS304, #SUS 304 Stainless Steel | Temp Range: | 200-500 Centidegree |
|---|---|---|---|
| Colors: | Optional | Uses: | Electric Industrial Oven Manufacturer |
| Feature: | Easy Operation | Voltage: | 220/380V |
| OEM: | Supports | Inner Structure: | Layers Or Trucks Or Customize |
| Warranty: | 1 Year | Heating Method: | Electric Heating |
| Inner Size: | All Size Can Customize |

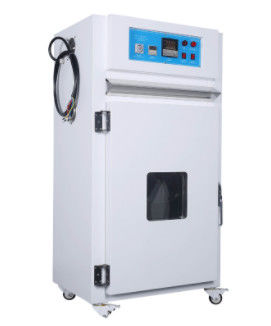

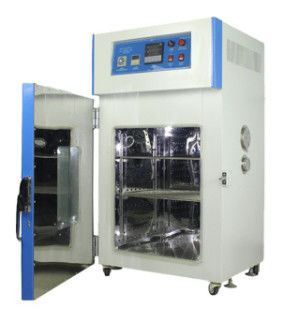

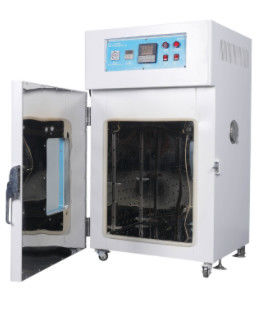

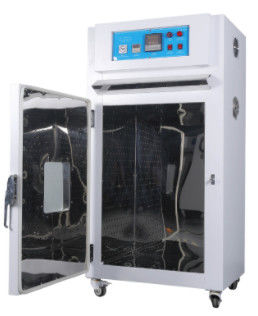

Liyi Hot Air Circulating Drying Cabinet Oven
Drying oven machine can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing. Drying oven machine supply precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.
Main Features:
1) Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel.
2) Use new high temperature resistant long shaft motor.
3) Turbine fan.
4) Silicone forced tight.
5) Over temperature protection, super load automatic power system.
6) Circulation system: air force level cycle.
7) Heating system: PID+S.S.R.
8) The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function.
9) Timer: temperature to time, when the power failure alarm indication.
10) According to customer demand matching glass window can be customized according to customer specifications specified.
Customized:
| Model |
Inner Size W*H*D(cm) |
External Size W*H*D(cm) |
Temperature Range(°C) |
Heating up Time |
Accuracy (°C) |
Uniformity (°C) |
Power |
Rate of Work (kw) |
| LY-645 | 45×40×40 | 66×92×55 |
(A-D) A:200°C B:300°C C:400°C D:500°C |
RT~100°C About 10min |
±0.3 | ±1% |
220V Or 380V |
3.5 |
| LY-660 | 50×60×50 | 70×125×65 | ±0.3 | ±1% | 4.5 | |||
| LY-690 | 60×90×50 | 80×156×65 | ±0.3 | ±1% | 5.5 | |||
| LY-6100 | 80×100×60 | 100×166×75 | ±0.3 | ±1% | 8 | |||
| LY-6120 | 90×120×60 | 110×186×75 | ±0.3 | ±1% | 10 | |||
| LY-6140 | 140×120×60 | 160×186×75 | ±0.3 | ±1% | 12 | |||
| LY-6160 | 160×140×80 | 180×206×97 | ±0.3 | ±1% | 14 | |||
| LY-6180 | 180×140×100 | 200×200×118 | ±0.3 | ±1% | 16 |
