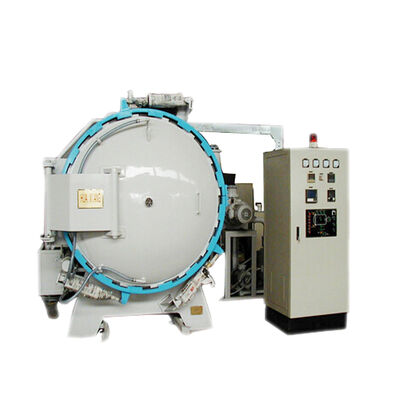

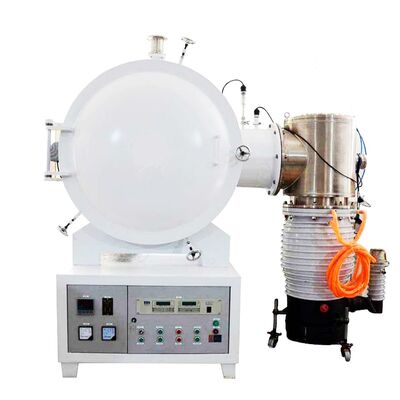

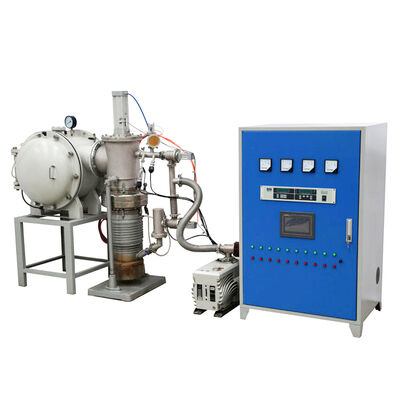

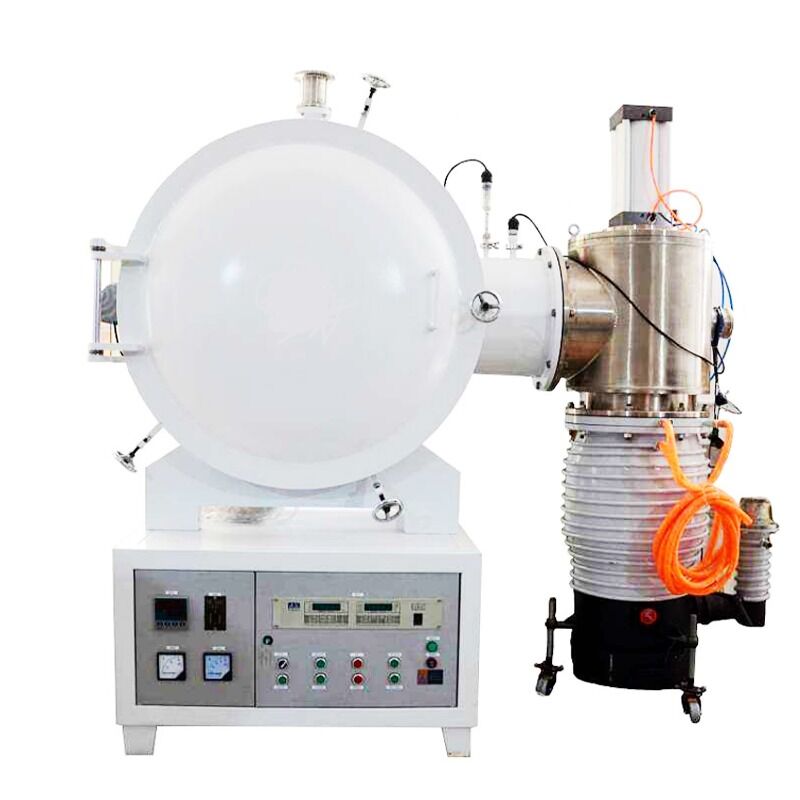

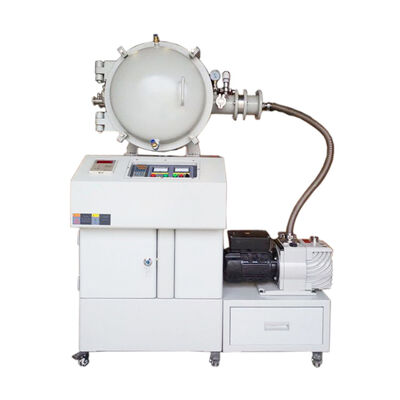

Liyi Nitrogen Hardening Muffle Sintering Vacuum Heat Treatment Furnace
Product Description
This series of equipment is ideal for scientific research institutions, universities, and industrial enterprises requiring high-temperature processing. It is designed for precision annealing, micro-crystallization, ceramic glaze preparation, mold annealing, powder metallurgy, plastic powder foam testing, nanomaterial sintering, metal part quenching, and other high-temperature heat treatment applications.
Specifications
| Model |
LY-16-17TP |
LY-16-18TP |
LY-16-19TP |
| Furnace size (W*H*D) mm |
150×150×80 |
200×150×150 |
300×200×200 |
| Outer size (W*H*D) mm |
735×750×1200 |
700×670×930 |
750×660×1020 |
| Weight (Kg) |
155 |
190 |
300 |
| Power rating |
3KW |
5KW |
9KW |
| Power |
220V 50/60HZ |
| Temperature control precision |
±1℃ |
| Vacuum degree |
-0.1MPa |
| Maximum temperature |
1800℃ |
| Heating rate |
0-30℃/min (recommended less than 20℃/min) |
| Thermocouple |
Type B |
| Heating element |
Silicon molybdenum rod |
| Display mode |
Color LED display |
| Gasket ring |
Fluorine ring |
| Vacuum pump |
Oil-immersed single rotary vane vacuum pump |
| Measuring mode |
Mechanical pressure gauge |
| Furnace material |
High alumina polycrystalline ceramic fiber |
| Furnace structure |
Double-layer forced air-cooling structure |
Product Images
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental equipment. With advanced technology, experienced personnel, and efficient service staff, we maintain fine quality management and a perfect after-sales service system.
Our production base is located in Dongguan, Guangdong province, China, with an additional office in Kunshan, Jiangsu province for Eastern China marketing and servicing. We serve customers from over 150 countries and regions, committed to helping customers establish testing labs to ensure product quality.
Frequently Asked Questions
1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers in China. Every machine purchased from our factory comes with a 12-month warranty after shipment. We offer free maintenance for 12 months, with an additional 2-month extension considering sea transportation. If your machine doesn't work, contact us via email or phone, and we'll provide a solution within 24 to 48 hours.
2. What's the delivery term?
Standard machines are typically available from stock. If not in stock, delivery time is 15-20 working days after deposit receipt. Urgent orders can be specially arranged.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements, including OEM and ODM services with your logo.
4. How can I install and use the machine?
We provide English operation videos via email. Most machines are shipped fully assembled - just connect the power cable to start. If needed, we can assist with on-site installation.
