|Material:||#SUS 304 Stainless Steel||Temperature Range:||A-d(20°C0~500°C)|
|Heating Up Time:||RT~100°C About 10min||Accuracy (°C):||±0.3|
|Uniformity (°C):||±1%||Rate Of Work (kw):||3.5~16|
|Heating System:||PID+S.S.R.||Circulation System:||Air Force Level Cycle|
|Drying:||Pre Heating Drying||Fan:||Turbine Fan|
custom industrial oven,
hot air circulating oven

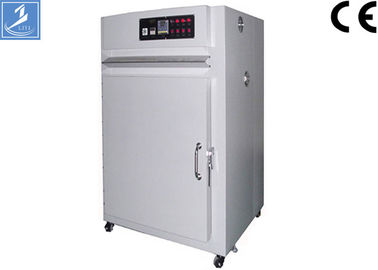

High temperature precise laboratory hot air drying oven for industry use
2. Product Introduction:
Inner Size (W*H*D)
controlling accuracy: ±0.5℃
Rate of work:
About 4.5 KW
2.2 Brief Introduction:
Dry Heat Sterilization Oven Price in China provide a stable test space for pre-heating, drying, changes about physics and chemistry testing. It supplies precision temperature controller with high stability of platinum resistance to temperature that makes temperature well-distribution.
Dry Heat Sterilization Oven Price in China are used to dry, bake and preheat various materials or specimen.
By means of hot air circulation method to uniform the temperature distribution.
1 Dry Heat Sterilization Oven Price in China adopts monolithic, thermal insulation layer is made of high quality mineral wool, shell, hot air circulation device, electric control cabinet on the right side of the industrial drying oven is convenient for operation, drying cabinet equipped with new air in and out of port, the cabinet ventilation duct and hot air circulation fan, drying the casing.
2 Case material: body skeleton adopts 40 x 40 mm Angle steel welded together, enclosure wall material is 0.8 mm thick stainless steel plate; Wind layer is made of thick 1 (SPCC) cold rolling steel plate, the outer wall material is 1 mm cold rolled high carbon steel, body surface coating light gray paint.
3 Thermal insulation material: high quality mineral wool, the thickness of the insulation layer design requirements to ensure that the oven in the rated operating temperature range, casing outer wall temperature at room temperature + 25 °C or less; > 100 mm insulation layer thickness of insulating layer at the bottom of the oven about 80 mm.
4 Door sealing strip:High temperature resistant asbestos rope seal
5 The door is:Design to open the door and the door is manual flat open, the door is steel structure steel and precision of high qualified steel plate assembly welding and into.
6 The door is sealed:USES the manual of the rod handle and the door is the soft edge sealing device, pressure can make the door and enclosure, make sure remain the state of closed box in the process of production, to eliminate the hot gases to escape, improved working environment, guarantee the box temperature uniformity and enhance energy saving effect.
7 The wind but I:Wind but made of 0.8 mm thick stainless steel plate surface blunt D13 holes, is used to control the air flow, to improve the drying oven temperature uniformity.
Heating up time
Rate of work
